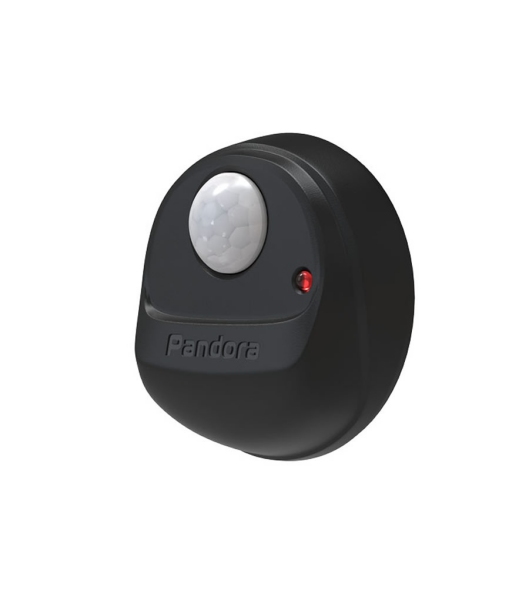

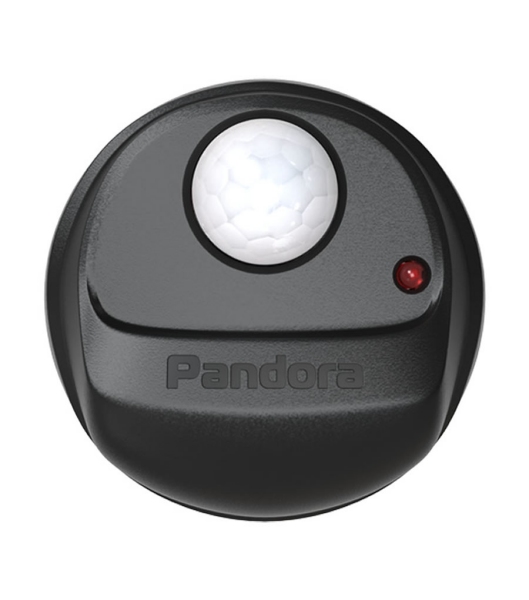

WIRELESS INFRA MOTION SENSOR PIR-100BT BLUETOOTH PANDORA

WIRELESS INFRARED MOTION SENSOR PIR-100BT-B BLUETOOTH PANDORA

The wireless infrared detector PIR-100BT is designed for motion detection in Pandora systems. It is intended for remote detection of unauthorized intrusion into a protected area. It uses infrared technology to detect heat signals generated by moving objects.

Technical parameters of the PIR100BT sensor:

• Radio interface: 2.4-2.5 GHz (BT 5.0)
• Motion sensor: passive infrared

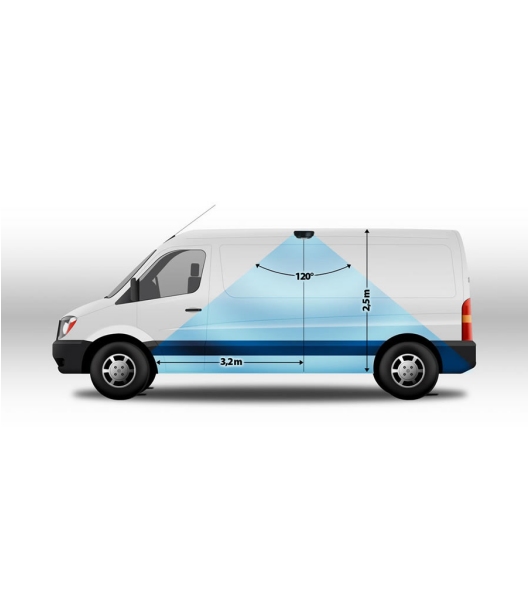

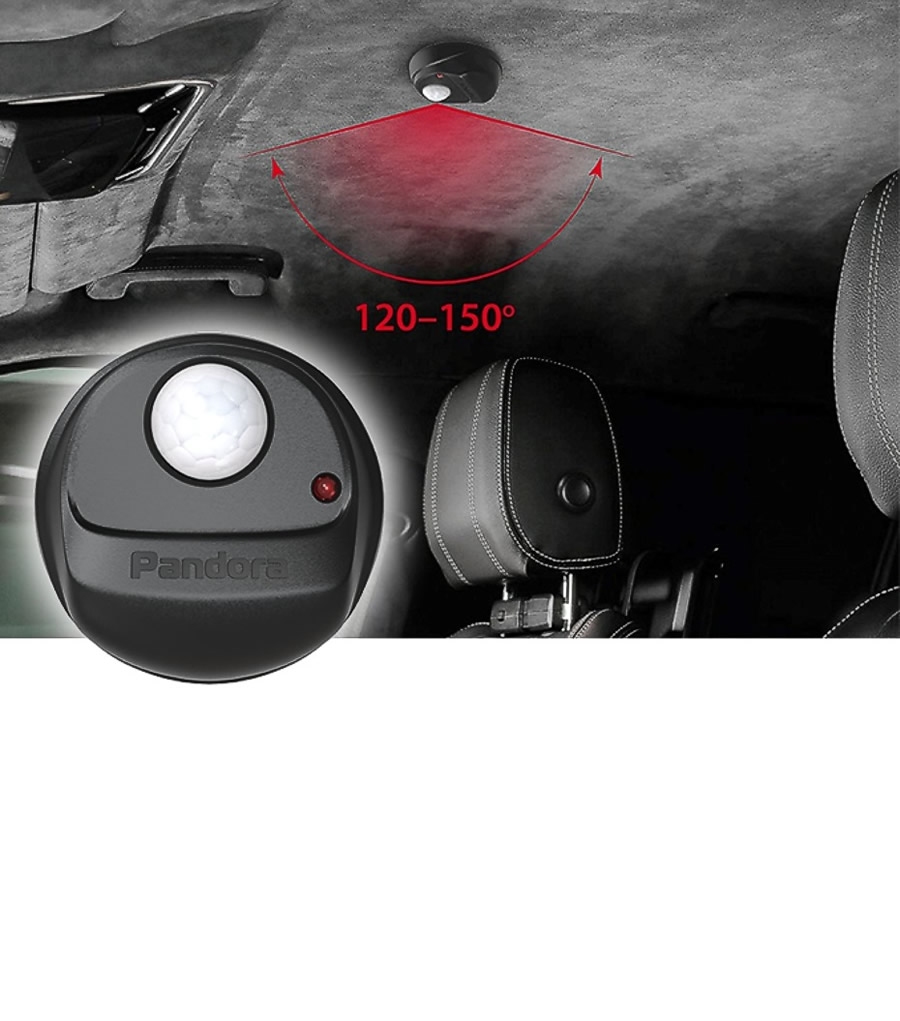

• Detection angle: 120°
• Operating range: 6 m
• Tamper contact: magnetic field sensor (Hall sensor)
• Battery: CR123A, 3 V
• Operating temperature range: -10°C to +40°C
• Protection rating: IP40

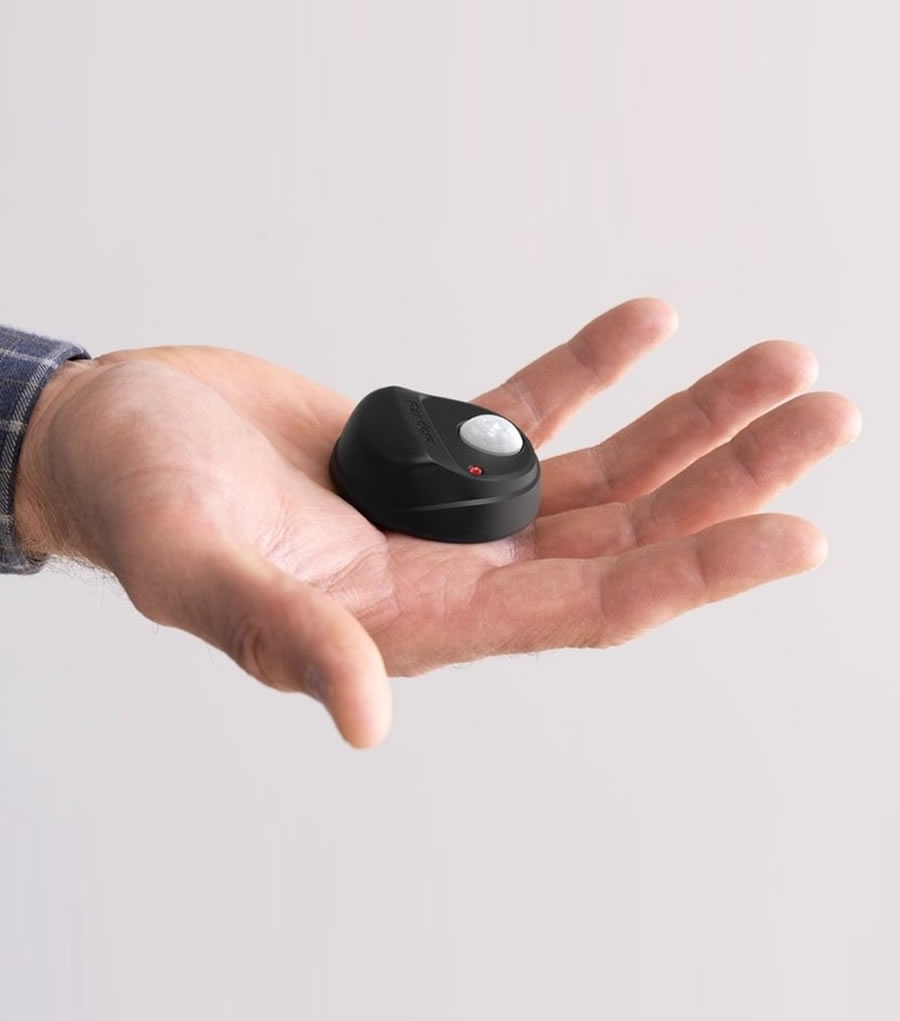

• Dimensions: Ø55x21 mm
• Housing color: black
• Weight: 18 g


Note: Compatible with Pandora security systems with BT 5.0 interface and software version v4.24 and newer.
