REVERSE REAR VIEW CAMERA CMOS HD NIGHT VISION WIDE ANGLE 190°TSCAM7 12-24V

Universal miniature parking camera with the view angle of 190°, for outdoor installation IP69K, with a resolution of 800TVL, use as a rearview or front camera, durable metal body, with the option to turn the guidelines on/off and to change the left/right image orientation. The camera tilt is adjustable and horizontal or vertical surface installation is possible. The camera can also be installed without a holder (glued), the camera dimensions without the holder is just 21 x 24 x 21 mm.


With a real angle of view of 190°, the BC UNI-WIDE can also look around the corner. This makes it an ideal solution for vehicles such as vans/motorhomes or trucks. This camera eliminates dangerous situations in city traffic, it is an invaluable helper for monitoring crosstraffic parking. If installed as a front, you can watch the approaching traffic even before you see the oncoming vehicles through the side window. Narrow streets and dense buildings are no longer a horror and cyclists will also feel safer.
​

Technical parameters:

• 1/4" low light HD CMOS sensor
  • scanning angle: 190°
  • image resolution 800 TV lines
  • brightness F1.2
  • min lighting less than 0.01Lux
  • effective points 960x480
• power supply: 12V/24V
• TV system: NTSC
• weather protection: IP69K

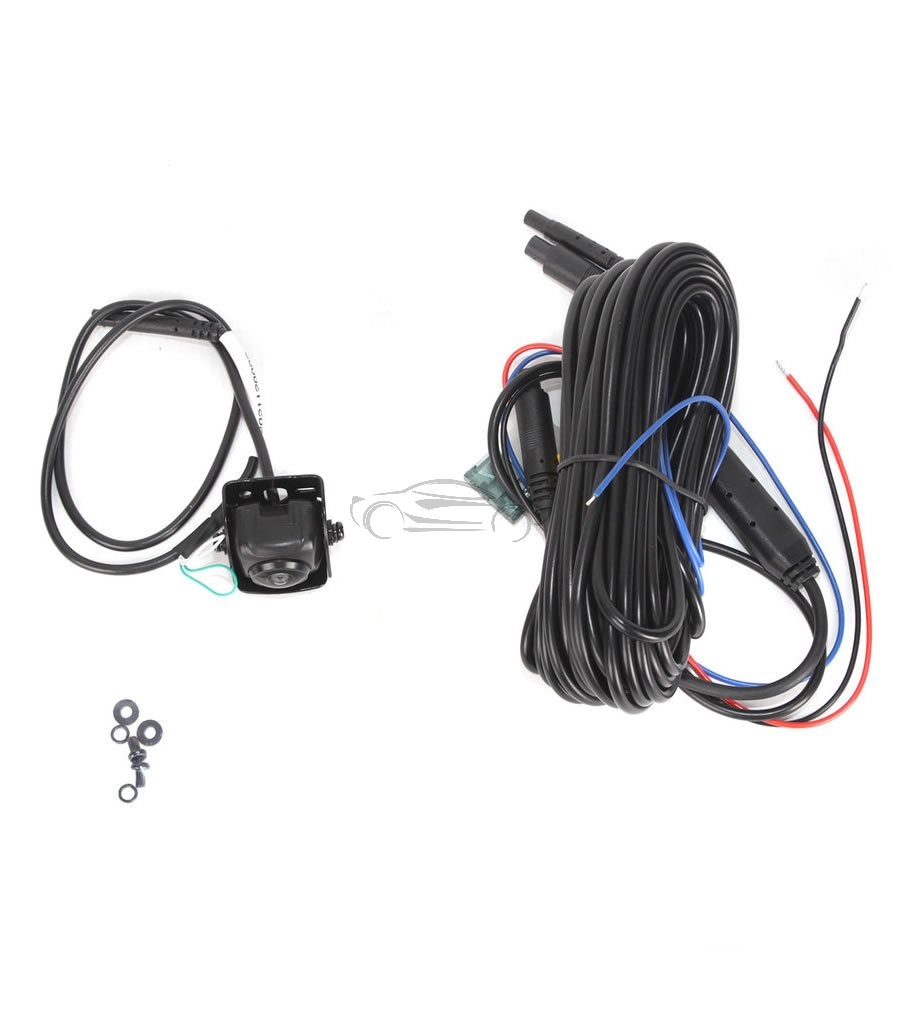

• Cabling
  • double shielded
  • length 8m
  • terminated with a CINCH connector
  • slim connector 5mm
  • 2 power connection options
    • from reverse light
    • from ACC
• hole for cabeling  5mm
• Operating temperature -35 ℃ to 85 ℃
• ECE R10

Features:

• GREEN LOOP - guide lines            - disappear after cutting the loop (shown by default)
• WHITE LOOP - image orientation  - left/right side will swap after cutting the loop
