REVERSE CAMERA OEM ŠKODA TSBCSKO-11

REVERSE CAMERA OEM ŠKODA BC SKO-11

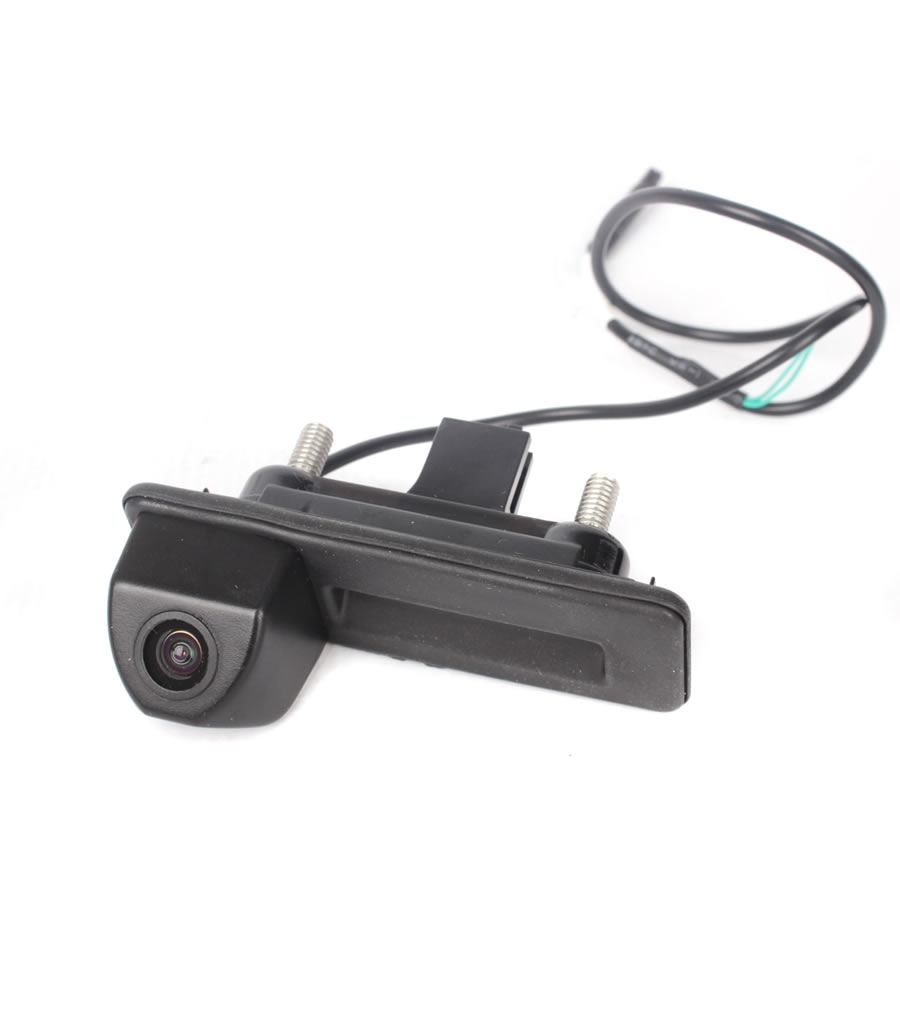

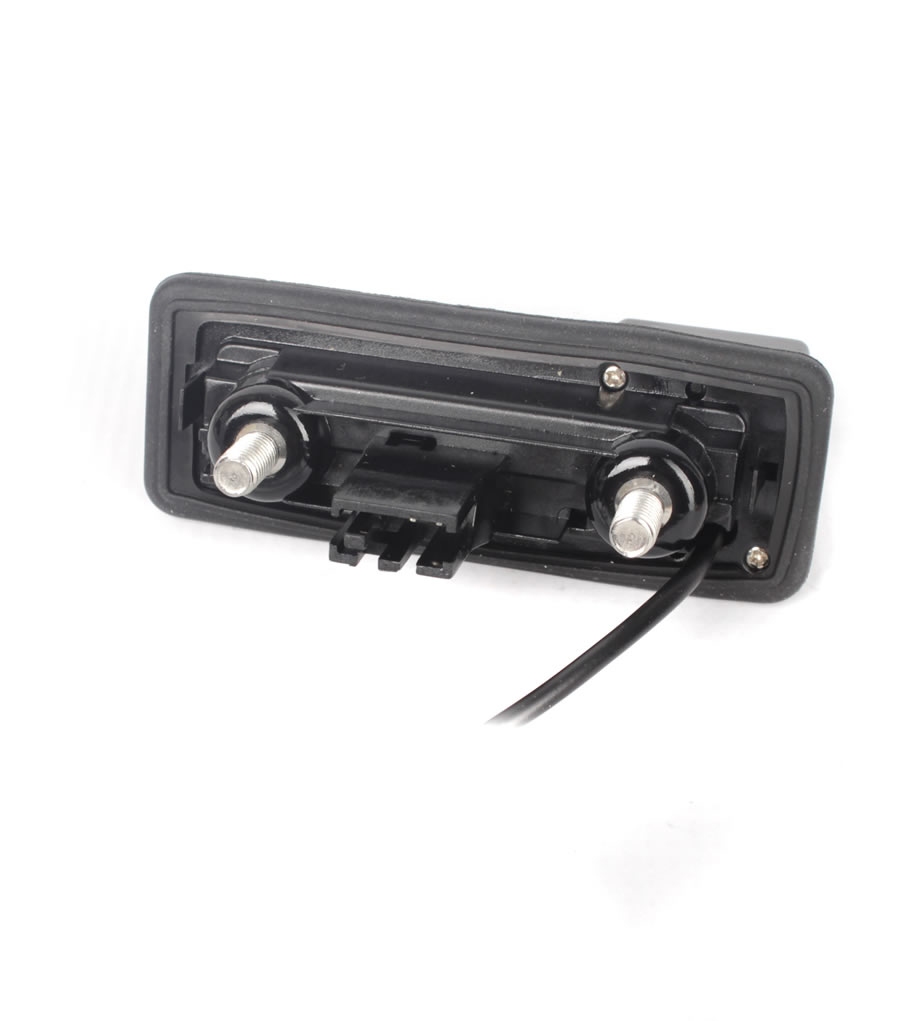

OEM color parking camera for installation into the rear door handle of the luggage compartment. It includes a microswitch for opening the door. For Škoda Fabia II., Audi A1 cars.

BC SKO-11 is suitable for cars:

• Škoda Fabia II. (12/2006-12/2014)
• Audi A1 (05/2010-)

Technical parameters BC SKO-11:

• sensing sensor: CMOS 1/3"
• option to enable/disable to display the guide lines
• electronic shutter: 1/60 1/10000 sec.
• minimum lighting: 0.05Lux
• signal-to-noise ratio:> 48dB
• TV system: NTSC
• number of TV lines: 700 TVL
• weather protection: IP67
• horizontal scanning angle: 120°
• image display: mirror image
• white balance: automatic
• working temperature from -30 °C to + 70 °C
• AGC, BLC, white balance: automatic

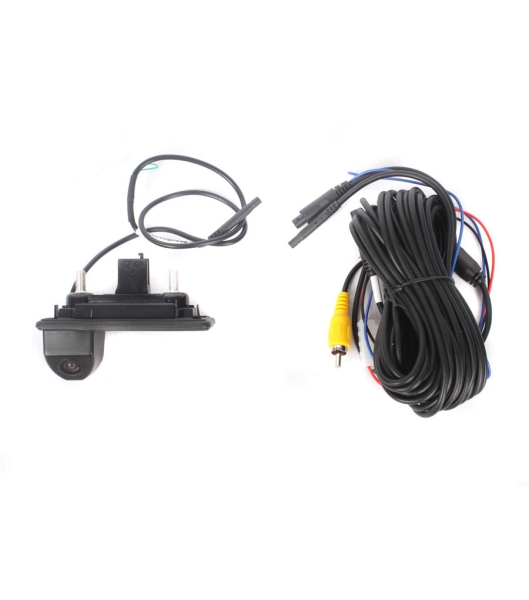

• signal cable: length 8 m (CINCH / RCA connector)
• double shielding of the signal cable
• video output: 1.0V / 75 Ohm
• power supply: 12V DC
• consumption: <1W

Camera body dimensions:

• base 35 x 92 mm
• pitch 50 mm

Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!
