LED DRIVING LIGHT OSRAM LEDriving® LIGHTBAR 153W 12/24V VX1250-CB SR LEDDL126-CB SR SM

OSRAM LEDriving® driving lights FUNCTIONAL VALUE SERIES VX

Powerful LED driving lights for off-road and on-road use

Considerable foresight on dark country roads, forest paths, off the beaten tracks, off-road and on-road- this can be achieved with the OSRAM LEDriving® VALUE series VX driving light portfolio. The driving lights combine affordability with exceptional performance, quality and functionality, providing users with impressive illumination on-road and off-road. Even in dim light and reduced visibility due to external environmental influences, the driving lights with up to 6000 Kelvin can provide conditions similar to daylight. The driving lights come in two distinct variants: single-row lightbar for a compact and sleek appearance and double-row lightbar for a more robust design. Versatile applicable, it defies numerous environmental influences and, thanks to high-quality materials such as the aluminum housing and the stable polycarbonate lens, it is particularly light and at the same time robust and resistant. Whether on-road or off-road, the VALUE series is an effective and efficient addition to your vehicle. They can be attached to cars, trucks, agricultural machinery, commercial vehicles, construction vehicles, caravans, off-road vehicles and quads¹. OSRAM provides a 2-year guarantee on these products².

LED DRIVING LIGHT OSRAM LEDriving® LIGHTBAR 153W 12/24V
VX1250-CB SR SM LEDDL126-CB SR SM 4062172365444

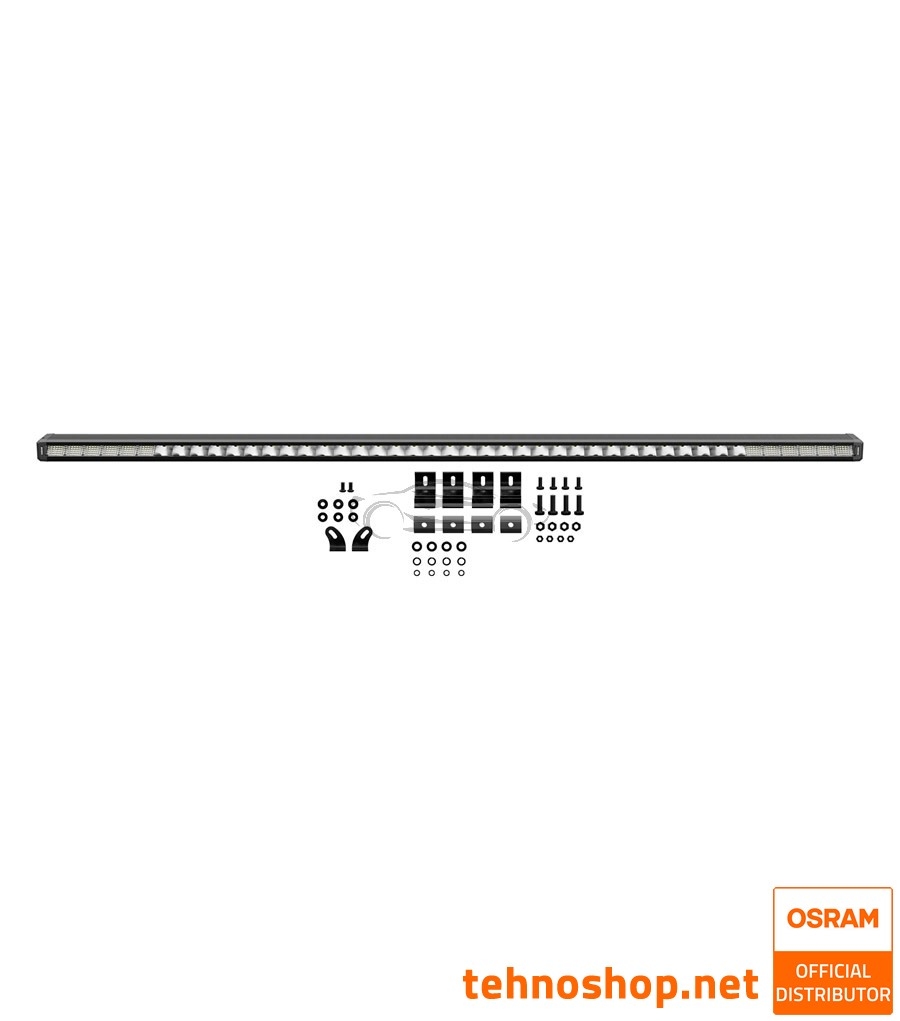

With its 45 powerful, high-performance LEDs, the driving light has a range of up to 590 meters and thus offers the driver impressive foresight on-road and off-road. Even in dim light and reduced visibility due to external environmental influences, the driving light with up to 6000 kelvin can provide conditions similar to daylight. The power package with up to 8000 lumens scores with highest optical efficiency and homogeneous light distribution. The driving light is characterised by its compact single-row design, ensuring a sleek appearance. In addition, the lightbar comes with standard brackets for various mounting options: hanging, standing and side. Versatile applicable, it defies numerous environmental influences and, thanks to high-quality materials such as the aluminum housing and the stable polycarbonate lens, it is particularly light and at the same time robust and resistant. The driving light has been tested and validated with the IP-Protection Classes IP6K8 & IP6K9K in our DIN certified environmental simulation laboratory for extreme external influences regarding water, dust, impacts, heat, cold and permanent vibration. Whether on-road or off-road, the LEDriving Lightbar VX1250-CB SR SM is an effective and efficient addition to your vehicle and can be attached to cars, trucks, agricultural machinery, commercial vehicles, construction vehicles, caravans, off-road vehicles and quads¹. OSRAM provides a 2-year guarantee on these products².


Product information VX1250-CB SR SM (LEDDL126-CB SR SM):

• CB = COMBO BEAM = Designed for both: far-field and near-field illumination
• SR = SINGLE ROW = single row of LED diodes
• SM = SINGLE MOUNT = Individual installation is possible due to the double ECE certification¹.
• The 45 intense, high-performance LEDs, with OSRAM technology, reach a distance of 590m and deliver 8000 lumens.
• The 6000 Kelvin, light intensity is distributed as a combo beam pattern- near and far-field illumination.
• The intelligent reflector design diverts the light from the LEDs so that oncoming traffic is only indirectly exposed to the light.
• Single-row (SR) design, ensuring a sleek appearance.
• To accommodate its wide range of uses, the searchlight is equipped with a durable shatterproof polycarbonate lens and aluminum die-cast housing with special black coating.
• The integrated driver and thermal management system, measures and regulates the temperature of the LED, eliminating the risk of overheating and aids in the longevity of its lifespan.
• Full LED polarity protection automatically breaks the circuit in the event of excess voltage, which ensures a long lifespan.
• The 12V/24V LED lightbar is ECE-compliant¹ and versatile in application and is not limited to automotive use only.

• Optional lightbar wire harness AX 2LS or AX 1LS are available and sold separately.

Product specification VX1250-CB SR SM (LEDDL126-CB SR SM):

• SKU: LEDDL126-CB SR SM
• Model: VX1250-CB SR SM
• EAN: 4062172365444
• Lumens: 8000lm
• Beam distance (@1lux): 590m
• Color temperature: 6000K
• Voltage: 12/24V
• Wattage: 158W
• IP protection: IP6K8, IP6K9K
• Weight: 3200 g

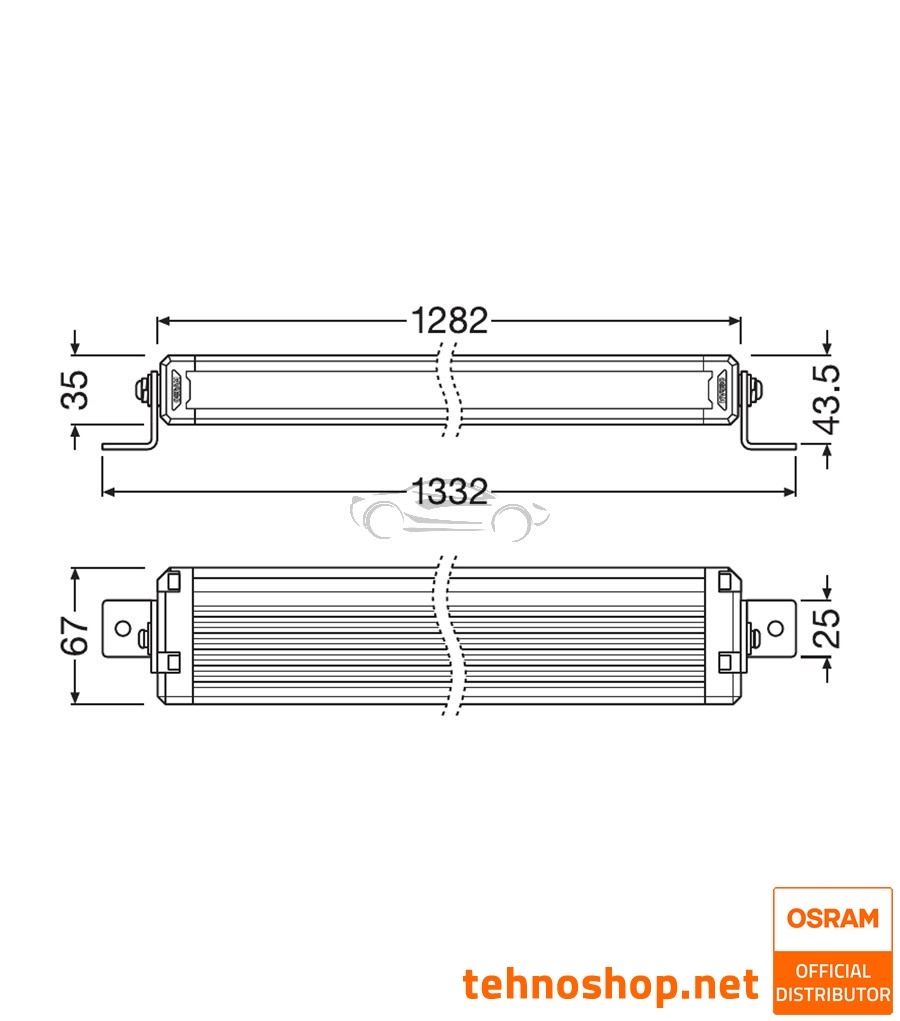

• Height: 35 mm
• Length: 1282 mm
• Width: 67 mm
• Lifespan Tc: > 5000 h
• Guarantee: 2 years²
• ECE-Certification: 2x R149¹
• ECE reference Number: 2x40 = 80 for single mount


⚠️ Note:

The product is an additional high beam headlight for use in motor vehicles without exchangeable light sources. Other areas of application are not permitted. Country-specific regulations are to be observed. Do not open product. The total of all reference numbers of the high beam headlights mounted on the vehicle may not exceed 100. This product requires additional assembly material as described in the instructions. Use switches, cables and fuses suitable for use in motor vehicles. Please make sure that all of the parts are correctly fixed in order not to damage mobile parts or functions of the vehicle. The cooling element on the back heats up when the product is in operation. For questions regarding maintenance or technical problems, please contact OSRAM customer service via ljubljana@tehnoshop.net.

🤝 TEHNOSHOP.NET

We are an official distributor of Osram. This is a guarantee of quality and originality directly from the manufacturer at the best prices on the market! There are many fakes on the market that are so perfect that neither the average buyer nor an expert can judge the authenticity of the product at first glance. That's why we offer you all our products delivered directly from the manufacturers, guaranteeing originality and quality that fakes cannot afford. Trust our expert team and ask us for advice!

^{1 OSRAM LEDriving Driving Lights are approved according to ECE regulations and may therefore be installed and operated on public roads. Please note: Special installation regulations apply. In addition to ECE approval of the product, individual special requirements and legislation of the countries must be observed.
2 For precise conditions refer to: www.osram.com/am-guarantee}
