LED LAMPS KIT/SET PHILIPS H3 LED 4500lm 6500K
LED LAMPS KIT/SET PHILIPS H3 LED 4500lm 6500K
LED LAMPS KIT/SET PHILIPS H3 LED 4500lm 6500K
LED LAMPS KIT/SET PHILIPS H3 LED 4500lm 6500K
LED LAMPS KIT/SET PHILIPS H3 LED 4500lm 6500K
LED LAMPS KIT/SET PHILIPS H3 LED 4500lm 6500K
LED LAMPS KIT/SET PHILIPS H3 LED 4500lm 6500K
LED LAMPS KIT/SET PHILIPS H3 LED 4500lm 6500K
LED LAMPS KIT/SET PHILIPS H3 LED 4500lm 6500K
LED LAMPS KIT/SET PHILIPS H3 LED 4500lm 6500K
LED LAMPS KIT/SET PHILIPS H3 LED 4500lm 6500K
LED LAMPS KIT/SET PHILIPS H3 LED 4500lm 6500K

LED LAMPS KIT/SET PHILIPS H3 LED 4500lm 6500K

LUXEON ZES
Article code:
CN7P-ZES-H3
OEM:
Regular price with VAT:
97,60 €
Discont:
10 % ( 9,76 € )
Discount price:
87,84 €
Lowest price in 30 days
97,60 €
ADD TO CART



You need advice? +386 31 028 128 or ljubljana@tehnoshop.net

Nudimo vgradnjo pri nas kupljenih izdelkov. Popust na storitev.We offer installation. Call us for an appointment.

Nudimo vgradnjo pri nas kupljenih izdelkov. Popust na storitev.Easy upgrade. Plug'n'play replacement.

Osram 4 leta garancije. Najboljša kvaliteta za najboljšo ceno.Cool white. Color temperature 6500K.

Osram 4 leta garancije. Najboljša kvaliteta za najboljšo ceno.Premium quality. 1 year warranty.

Osram 4 leta garancije. Najboljša kvaliteta za najboljšo ceno.PHILIPS original​. LUMILEDS ZES chip.

LED lamps kit/set H3 6500K 4500lm
CN7P-ZES-H3 series 7P

LED kit komplet PHILIPS LUXEON ZES (series 7P) offers extremely intense brightness, high-quality LEDs offer as much as 4500LM of light (see important when buying), the additional advantage of the led kit is also fanless cooling and unique eccentric heatsink design for offset mounting, suit for more cars.



LED lamps kit/set H3 6500K - replacement for halogen H3 bulb

  • Good lighting pattern-with next Gen ZES chips.
  • High efficiency with RFI protection.

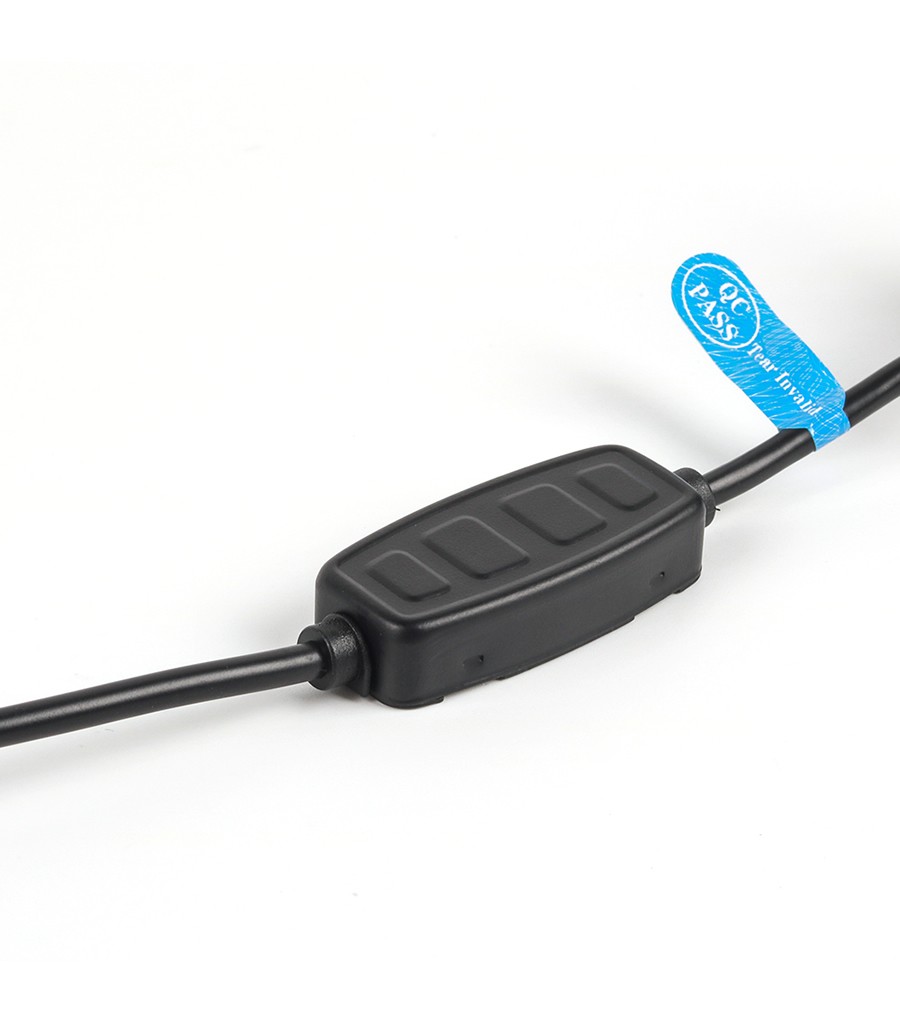

  • Small External IC Driver for better fitting.
  • 360° adjustable base (8 locking pits can be fixed to your liking for a more appropriate beam angle).
  • 1 year warranty.
  • Long lifespan (more than 50,000 hours).

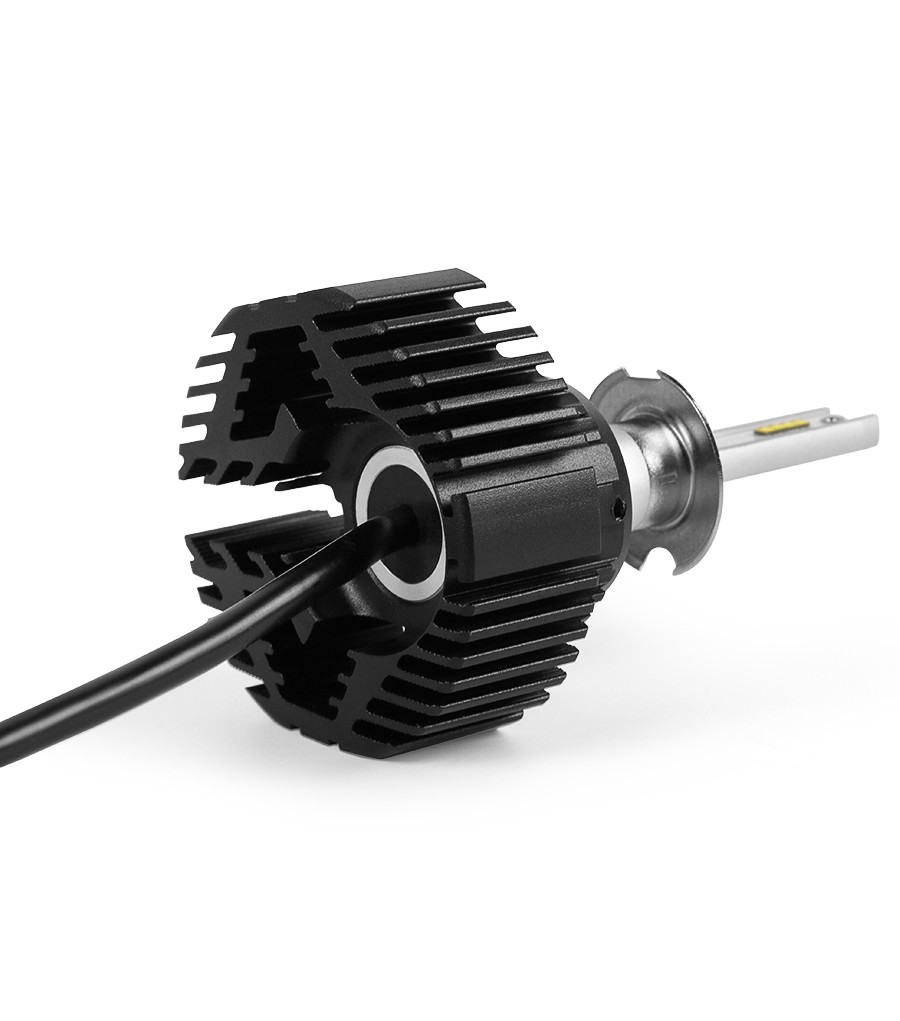

  • Unique eccentric heatsink design for offset mounting, suit for more cars.


The advantage of the LED kit of the PHILIPS LUXEON ZES kit compared to other LED kit sets is that the set contains additional voltage stabilizers (driver). It takes care of the constant tension and the slightest heating of the lamp itself, which means that the luminance is uniform and does not decrease with longer use. Due to the voltage stabilizer, the lifetime of LED lamps is extended, as there are no disturbances in voltage fluctuations and overheating. Installation is simple and allows connection to existing factory connections. Suitable for off road or tuning.


When replacing conventional lamps with LED lamps, it is best to have a special workshop in addition to the installation, Replacement also sets the headlight beam, as this results in minimal deviation of the position of the filament of the classical bulb and the LEDs of the LED. In the event that the headlights are not set, the light beam will illuminate incorrectly, so that you do not take advantage of the maximum power of the LED lamp and dangerously blind the opposite vehicle.


NOTE: LED bulbs have very low power consumption, so vehicles with computer-aided light-emission testing may experience flashing, failing or false warning about the burn-in of the lamp, despite the CanBus LED-mounted light bulb. In most vehicles, it usually prevents operating errors, but not at all. Despite the use of the CanBus LED lamp, there is still a false message about the burning of the lamp. In this case, an additional intermediate resistor should be added to the bulb.

Warranty
1 year
Homologation ECE
no ECE homologation - not be used on public roads
LED chip:
8x Philips LUXEON ZES
Wattage
32W (64W per set)
Voltage
12/24V
Base
PK22s
Current consumption
2.0A±0.2A
Lumens
4500lm
Lumens (real, measured)
1760lm (check Important before buying)
Pack Quantity
2 pieces (1 pair)
Color temperature
6500K
Type of lamp
H3
Life time
> 50000 hours

Manufacturers and various vendors of the customer mislead with incorrect technical data on LED bulbs. In particular, there are errors in luminance data (LM). In our online store, the technical data is also published according to the manufacturer's technical sheet.


Due to customer care, we checked technical data for LEDs and obtained the following results:

- The LED lamp has LUXEOS ZES chips that produce 220-245LM of luminance

- for 6 LED chips, this means 1320LM (6 x 220LM)

- for 8 LED chips, this means 1760LM (8 x 220LM)

- the LUXEOS ZES chips manufacturer's data are in the table below


Tehnični podatki LUXEOS ZES LED kit komplet





The next step was the LED test set of the H7 kit, which we tested in Slovenia on a dedicated device (PDF document):
Meritev svetilnosti led sijalk retrofit h7 luxeon zes philips
