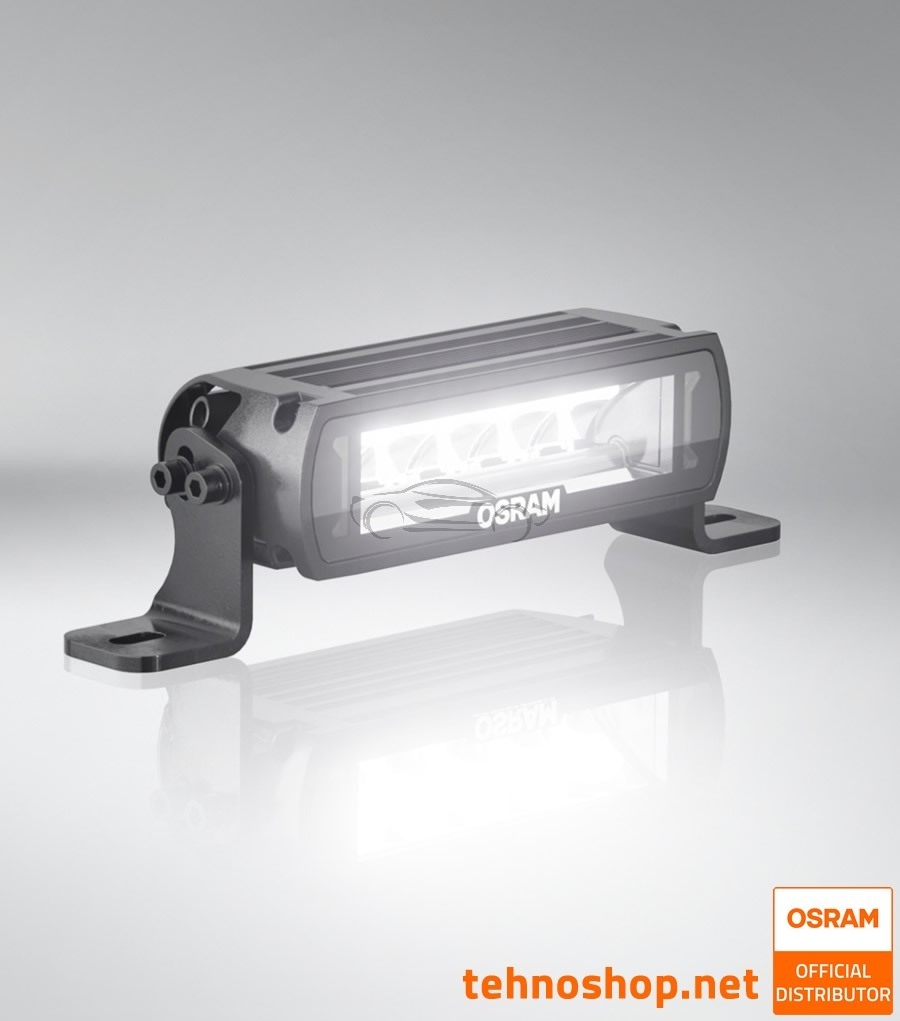

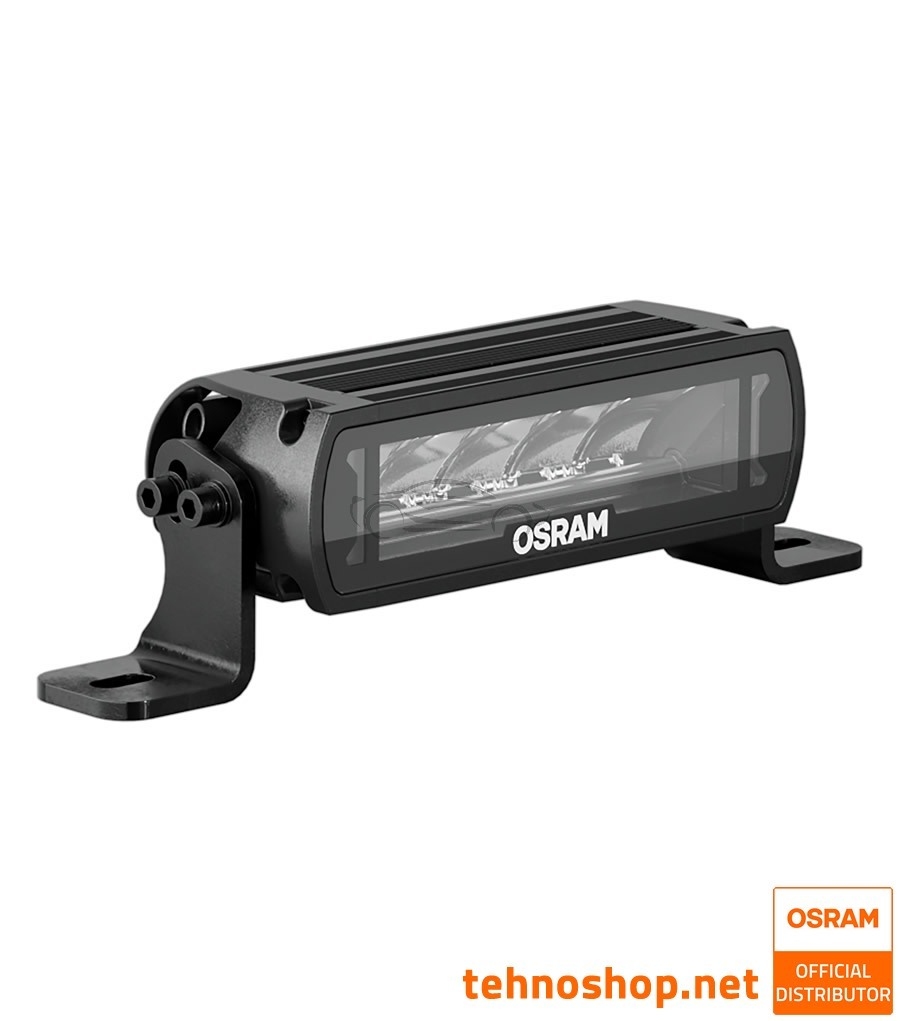

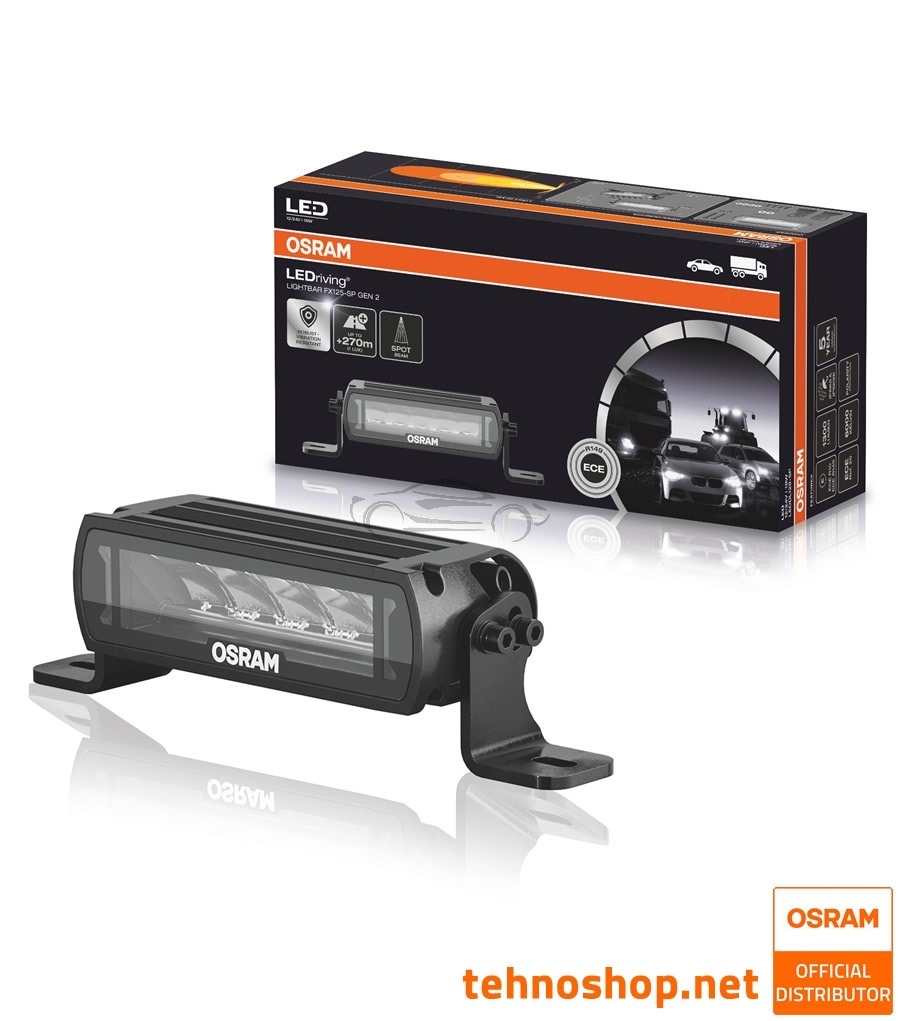

LED DRIVING LIGHT OSRAM LEDriving® LIGHTBAR 18W 12/24V FX125-SP GEN2 LEDDL128-SP

OSRAM LEDriving® driving lights FUNCTIONAL SERIES FX GEN 2

Particularly when driving on rural and dirt roads, a greater range of visibility can play a key role in ensuring safety.

The LEDriving® Functional series FX Gen 2 driving lights portfolio provides additional, far field illumination on dark roads. Even in poor visibility conditions or at dusk, the high-performance LEDs reach a light distance of up to 635 meters and daytime lighting conditions with a color temperature of 6000 Kelvin. The FX driving lights impress with its special reflector design and ensure not only a modern and appealing look but also reduces glare for more visibility on the road. They can be used as both a supplementary LED high beam headlight and a powerful working light. The light is fully ECE-compliant in both versions and therefore suitable for use on roads. Additionally, OSRAM has developed a specially designed mounting kit, compatible with all driving lights of the Functional series FX Gen 2 for individual mounting. Versatile applicable, it defies numerous environmental influences and, thanks to high-quality materials such as the aluminum housing and the stable polycarbonate lens, it is particularly light and at the same time robust and resistant. Complete polarity protection both prevents damage from excess voltage and contributes to a longer lifespan. The Functional series FX has been tested and validated with the IPProtection Classes IP6K8 & IP6K9K in our DIN certified environmental simulation laboratory for extreme external influences regarding water, dust, impacts, heat, cold and permanent vibration. Its variability gives the FX series a flexible range of uses. They can be attached to cars, trucks, agricultural machinery, commercial vehicles, construction vehicles, caravans, off-road vehicles and quads¹. OSRAM provides a 5-year guarantee on these products².

LED DRIVING LIGHT OSRAM LEDriving® LIGHTBAR 18W 12/24V
FX125-SP GEN2 LEDDL128-SP 4062172365543

Product information FX125-SP (LEDDL128-SP):

• SPOT BEAM - Beam pattern for particularly focused high beam distribution
• The 5 intense, high-performance LEDs, with OSRAM technology, reach a distance of 270m and deliver 1300 lumens.
• The 6000 Kelvin, light intensity is distributed as a combo beam pattern- near and far-field illumination.
• The intelligent reflector design diverts the light from the LEDs so that oncoming traffic is only indirectly exposed to the light.
• To accommodate its wide range of uses, the searchlight is equipped with a durable shatterproof polycarbonate lens and aluminum die-cast housing with special black coating.
• The integrated driver and thermal management system, measures and regulates the temperature of the LED, eliminating the risk of overheating and aids in the longevity of its lifespan.
• Full LED polarity protection automatically breaks the circuit in the event of excess voltage, which ensures a long lifespan.
• The 12V/24V LED lightbar is ECE-compliant¹ and versatile in application and is not limited to automotive use only.

• Optional lightbar wire harness AX 2LS or AX 1LS are available and sold separately.
• Optional lightbar mounting kit FX GEN2 is also sold separatelly.

Product specification FX125-SP (LEDDL128-SP):

• SKU: LEDDL128-SP
• Model: FX125-SP
• Lumens: 1300lm
• Beam distance (@1lux): 270m
• Color temperature: 6000K
• Voltage: 12/24V
• Wattage: 18W
• IP protection: IP6K8, IP6K9K
• Weight: 1074 g
• Length: 54 mm
• Width: 83 mm
• Height: 182 mm
• Lifespan Tc: > 5000 h
• Guarantee: 5 years²
• ECE-Certification: R149¹
• ECE reference Number: 20

⚠️ Note:

The product is an additional high beam headlight for use in motor vehicles without exchangeable light sources. Other areas of application are not permitted. Country-specific regulations are to be observed. Do not open product. The total of all reference numbers of the high beam headlights mounted on the vehicle may not exceed 100. This product requires additional assembly material as described in the instructions. Use switches, cables and fuses suitable for use in motor vehicles. Please make sure that all of the parts are correctly fixed in order not to damage mobile parts or functions of the vehicle. The cooling element on the back heats up when the product is in operation. For questions regarding maintenance or technical problems, please contact OSRAM customer service via ljubljana@tehnoshop.net.

🤝 TEHNOSHOP.NET

We are an official distributor of Osram. This is a guarantee of quality and originality directly from the manufacturer at the best prices on the market! There are many fakes on the market that are so perfect that neither the average buyer nor an expert can judge the authenticity of the product at first glance. That's why we offer you all our products delivered directly from the manufacturers, guaranteeing originality and quality that fakes cannot afford. Trust our expert team and ask us for advice!

^{1 OSRAM LEDriving Driving Lights are approved according to ECE regulations and may therefore be installed and operated on public roads. Please note: Special installation regulations apply. In addition to ECE approval of the product, individual special requirements and legislation of the countries must be observed.
2 For precise conditions refer to: www.osram.com/am-guarantee}
