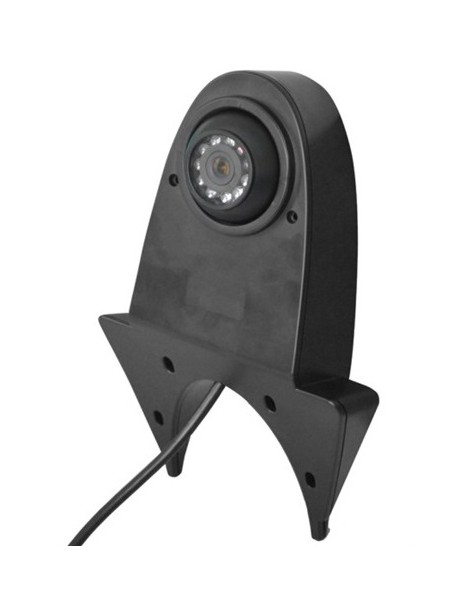

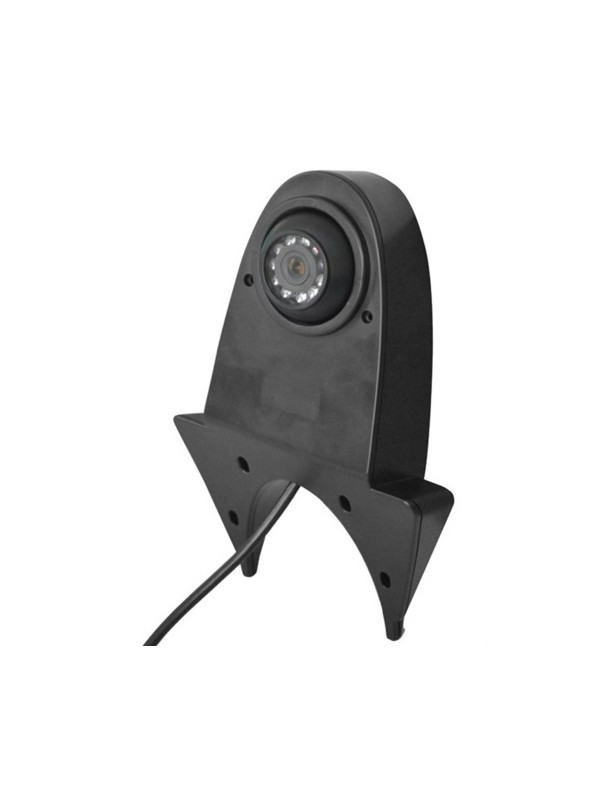

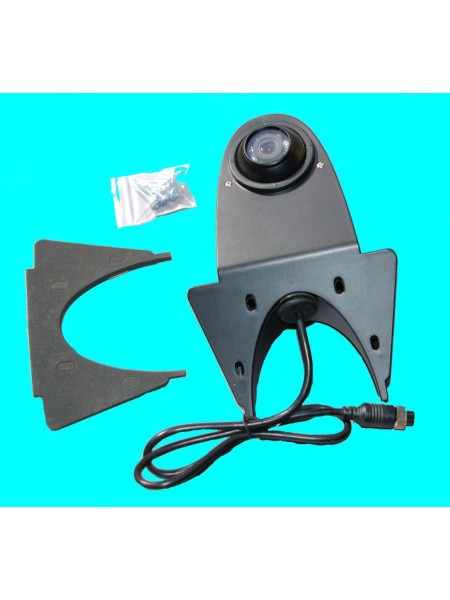

UNIVERZALNA KAMERA ZA VZVRATNO VOŽNJO AHD Z NOSILCEM ZA KOMBIJE CAM2HD

UNIVERZALNA KAMERA ZA VZVRATNO VOŽNJO AHD Z NOSILCEM ZA KOMBIJE CAM2HD

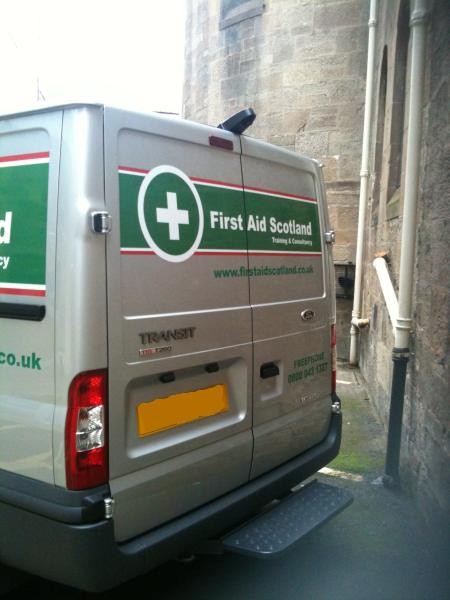

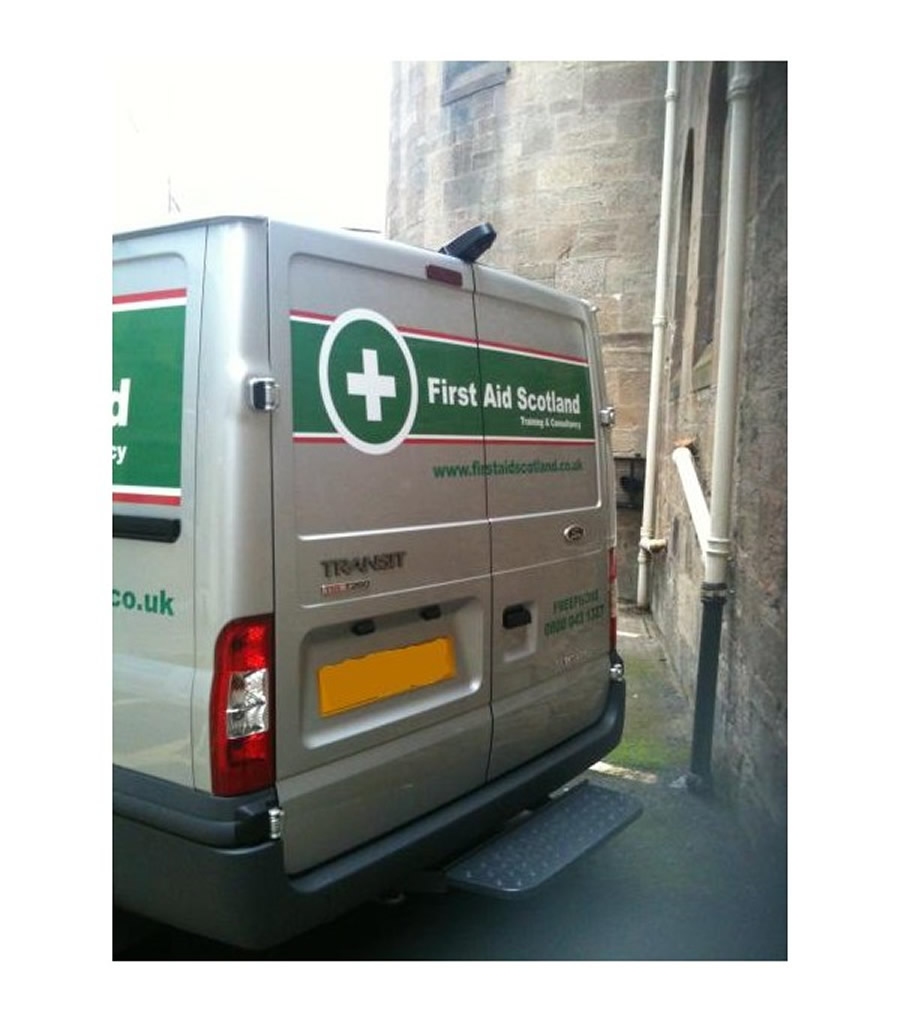

AHD kamera  z resolucijo720p, s samodejnim IR, za prikaz na monitorju AHD, napajanje z monitorja prek M12 4PIN priključka, idealno za namestitev zadaj na zgornji rob.


Tehnične lastnosti avto kamere:

• CMOS 1/3" sensor chip
• HD resolution 720p
• automatic illumination, 10 x IR LED
• angle: sensing: 120°
• PAL TV system
• water resistance: IP69K
• shock resistance min. 4G
• image orientation: mirror image
• possibility to rotate / tilt the camera lens while installed
• 0.3m cable terminated with a 4PIN M12 screw connector
• DC 12V power supply (powered from the monitor, it is also designed for 24V vehicles)
• power consumption: <3W
• working temperature from -20 to +70 °C

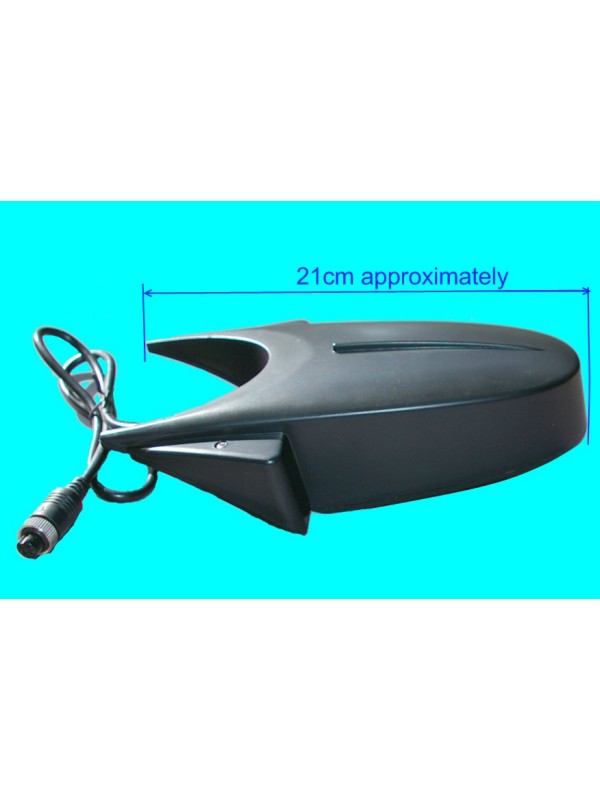

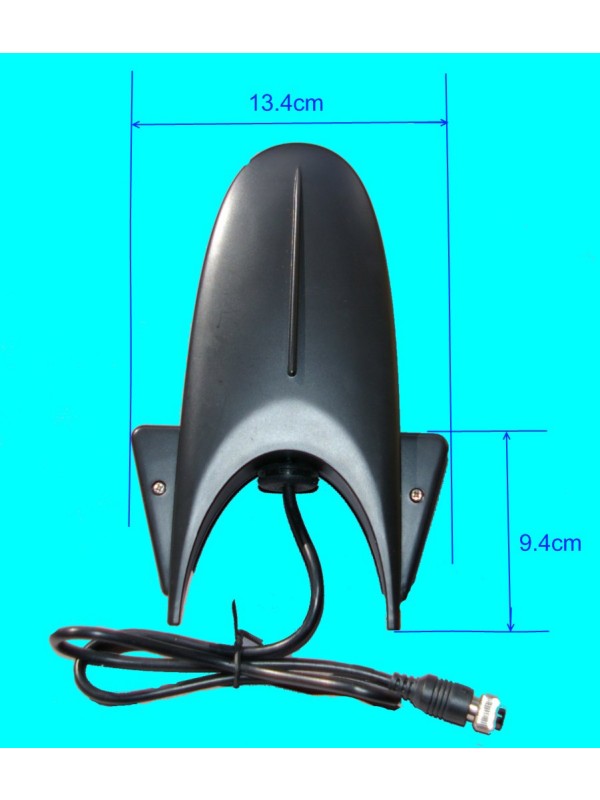

• dimensions: 210 x 128 x 62 mm


Opomba. Kamera AHD je zasnovana za prikaz na monitorju AHD, analogni monitorji ne podpirajo kamer AHD.
