KAMERA ZA VZVRATNO VOŽNJO IVECO DAILY (11-) TSBCIVE-03

KAMERA ZA VZVRATNO VOŽNJO
IVECO DAILY (11-)  BC IVE-03

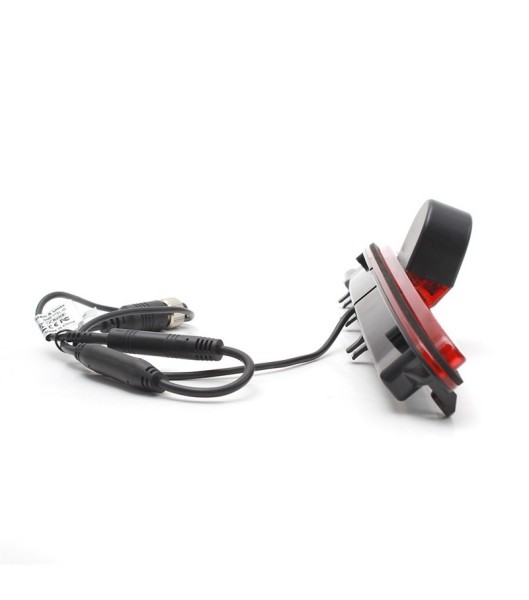

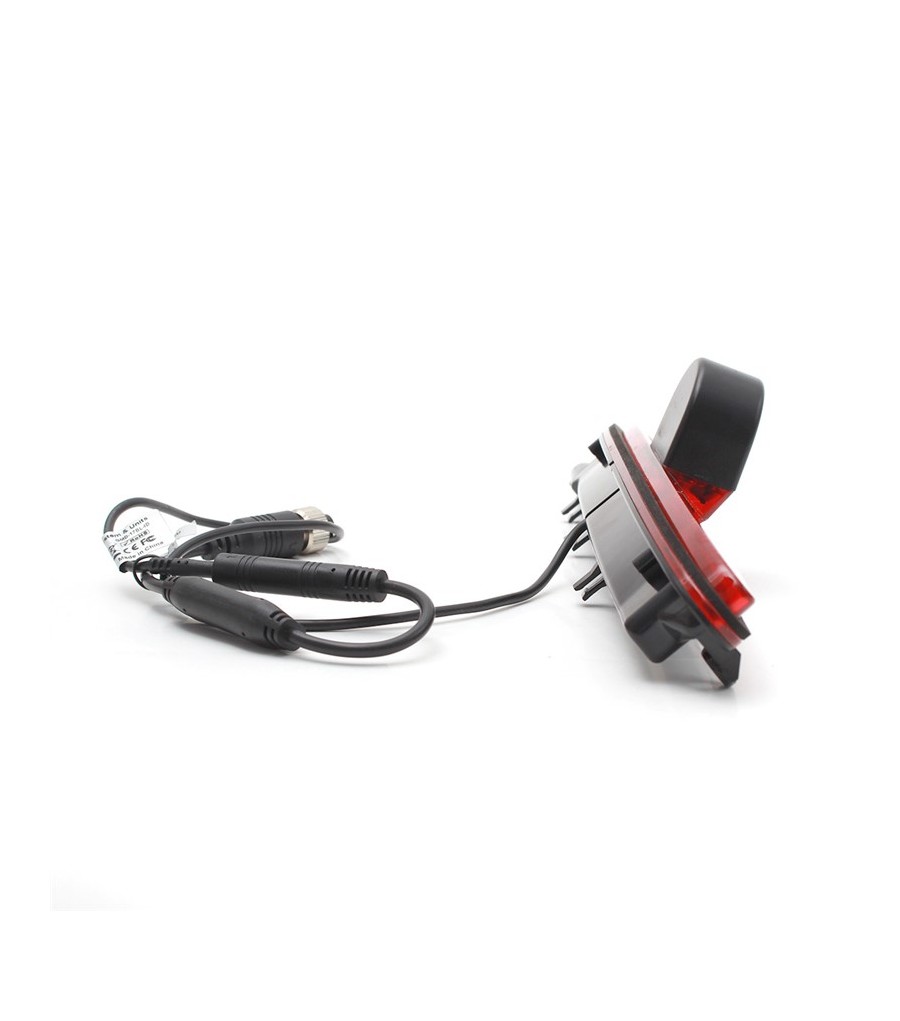

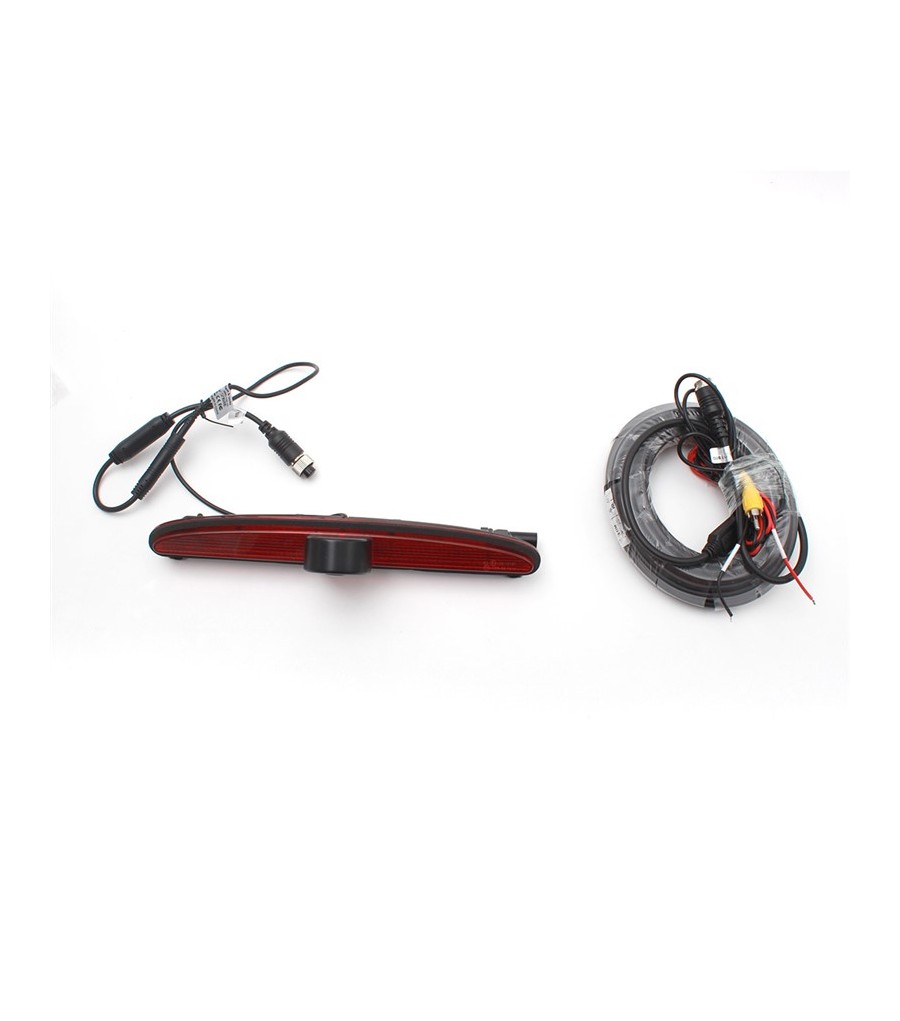

OEM Rear view camera integrated in the central brake light installed above the rear wing door for IVECO Daily IV, V.


Suitable for cars:

• IVECO Daily IV. (11-14)
• IVECO Daily V. (14-)

Technical parameters:

• CCD 1/3" scanning chip
• lens focal point: f: 2.8mm
• TV system: NTSC
• video output: 1.0V / 75Ohm
• sensing angle: 170°
• weather protection: IP69K
• camera connector: 4-pin screwdriver
• monitor connector: CINCH (RCA)
• cable length: 10m
• number of scanning pixels: 510x492
• horizontal resolution: 420 TV lines
• white balance: automatically
• minimum lighting: 0.5 LUX
• signal-to-noise ratio:> 48dB
• Electronic shutter: 1/60 to 1/100000 sec.
• power consumption: <3W
• supply voltage: 12V
• operating temperature from -30 °C to + 70 °C
• homologated: yes

Dimensions:

• base 240 x 30 mm

Installation:
The camera is integrated in the central brake light located in the left wing door, replacing the original brake light. The brake light signaling is provided with integrated LEDs. The connector is identical to the original connector.

Note: The camera is intended for non-original (aftermarket) units with CINCH (RCA) input. Use of the original radio may require BCMI video adapter to be connected to the parking camera!
