ŠIROKOKOTNA KAMERA FULLHD 1080p AHD
ZA PARKIRANJE NIGHT VISION
TSBCUNI-WIDE-AHD 12/24V

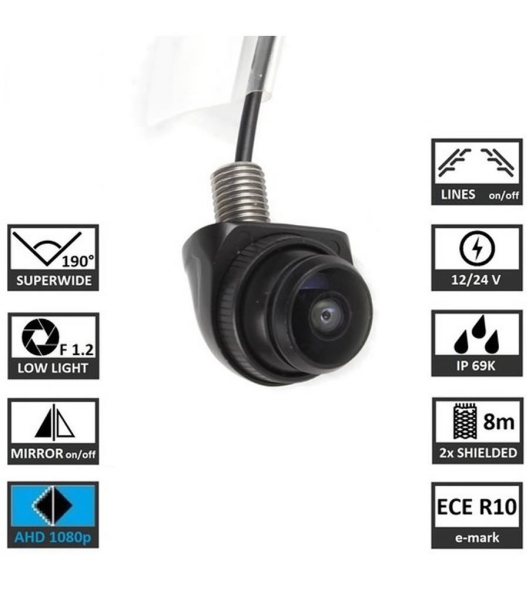

Universal miniature parking camera with 180° view angle, with FullHD resolution 1080p - AHD signal, use as a rearview camera in the licence plate space, or as a side camera to the rearview mirror, or as a front to the grille of the front mask/bumper, with the option to turn the guidelines on/off and to change the left/right image orientation. For display, use an AHD compatible monitor.

Technical parameters:

• 1/3" low light HD CMOS sensor
  • view angle: 180° horizontally
  • image resolution 1920x1080 (1080p)
  • signal type: AHD
  • aperture F1.2
• power supply: 12V/24V
• TV system: NTSC
• BLC auto
• weather protection: IP69

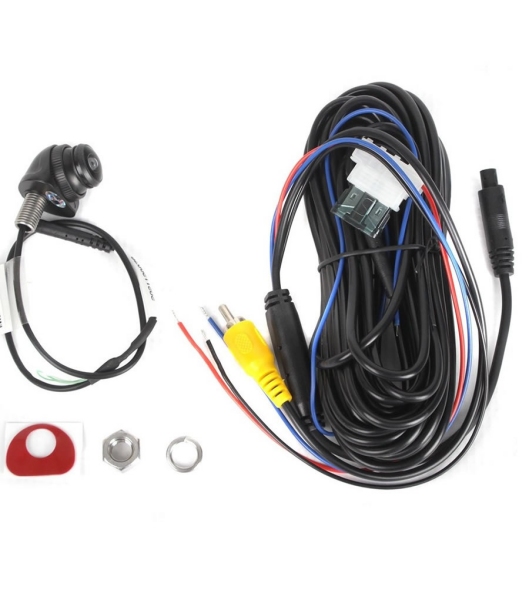

• Cabling
  • double shielding
  • length 8 m
  • terminated with a CINCH connector
  • slim connector 5mm
• 2 power connection options
  • from the reversing light
  • from the ignition
• working temperature -20℃ to 75℃
• ECE R10

Features:

GREEN LOOP - guide lines - disappear after cutting the loop (they are displayed by default)
WHITE LOOP - image orientation - left/right sides are swapped after cutting the loop
