KAMERA OEM ZA VZVRATNO AUDI VOŽNJO (1997-)TSBCADI-02

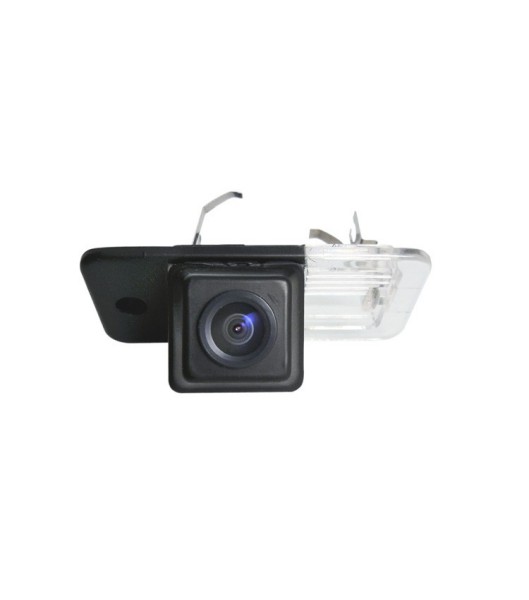

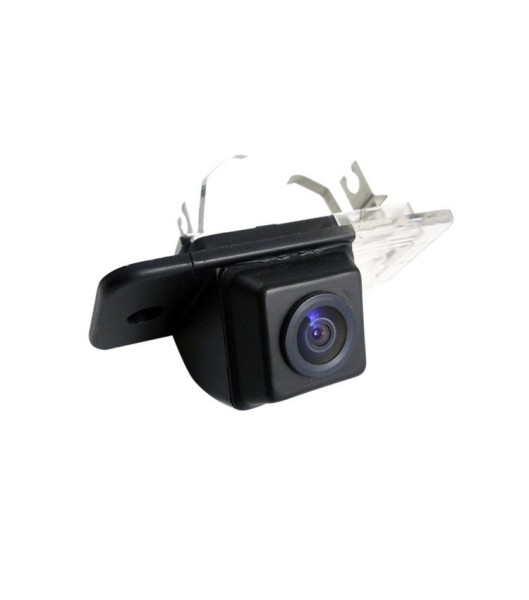

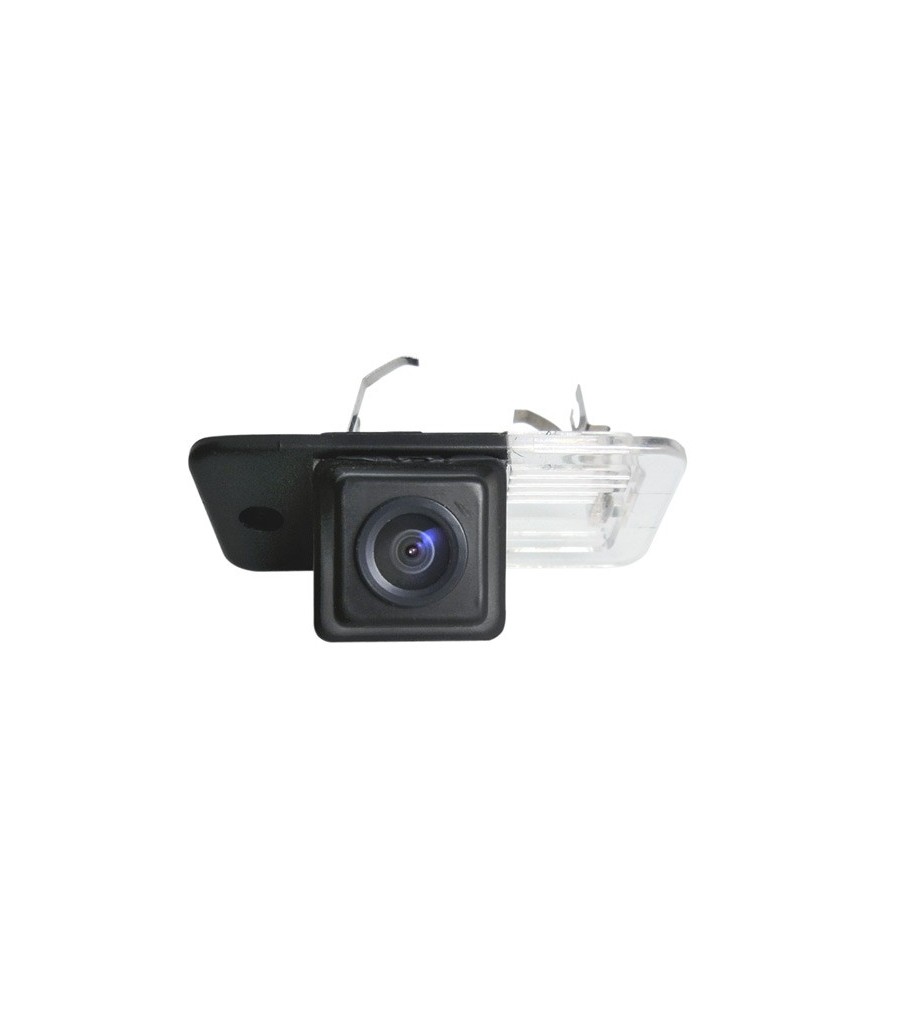

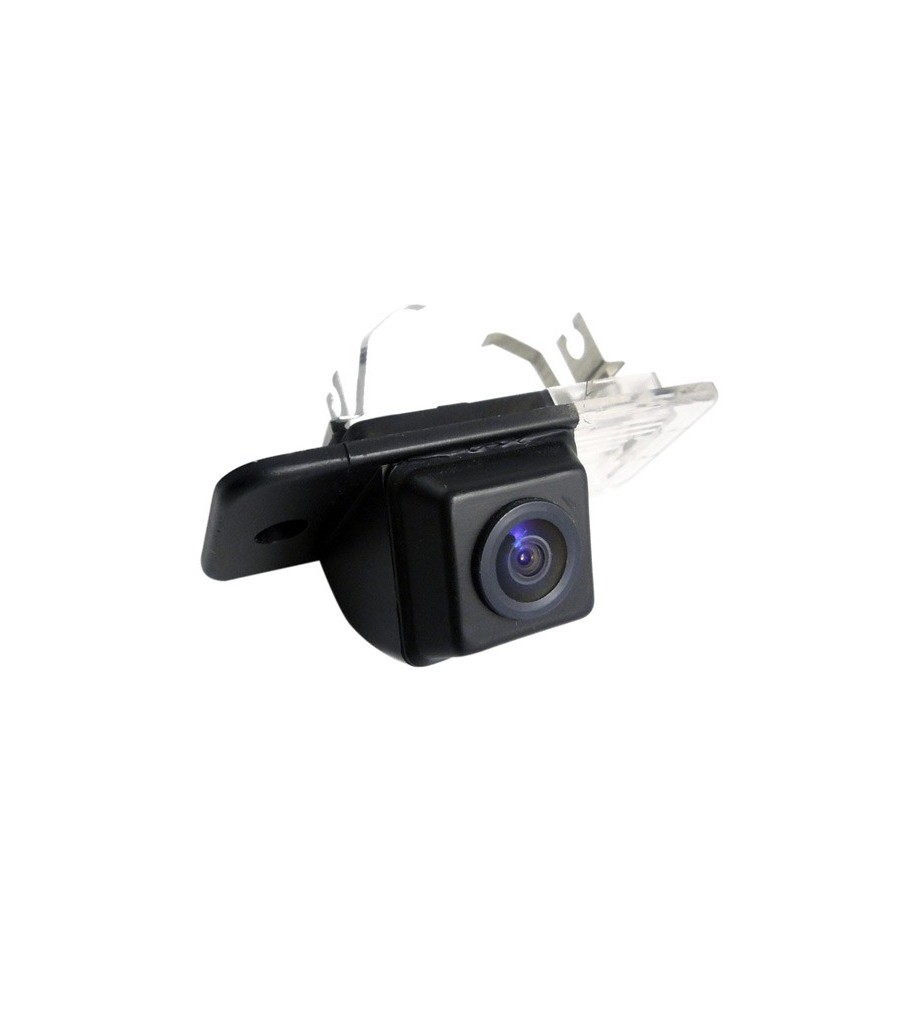

OEM colour parking camera to install into the rear licence plate light body. There is a special place in the camera body assigned for the light bulb replaced from the original lamp.

Suitable for the car models:

• AUDI A3 [8P] (2003-2010)
• AUDI S3 (2007->)
• AUDI A4 [B6] (2001-2005) sedan / combi
• AUDI A4 [B7] (2005-2008) sedan / combi
• AUDI A5 (2007->)
• AUDI S5 (2007->)
• AUDI A6 [C5](1997-2004) sedan / combi
• AUDI A6 [C6] (2005-2011) sedan / combi
• AUDI Q7 (2007->)

Technical parameters:

• sensor: PC3089 1/3"
• option to enable/disable to display the guide lines
• electronic Aperture: 1/60 1/10000 sec.
• minimum lighting: 0.1Lux
• signal-to-noise ratio:> 48dB
• TV system: NTSC (supported by each monitor/head unit)
• number of TV lines: 600
• effective pixels 668 × 576 pixels
• weather protection: IP67
• view angle: 170°
• camera body: durable plastics "private housing"
• image display: mirror
• operating temperature from -30 °C to + 70 °C
• AGC, BLC, white balance: automatically
• signal cable: 6.2 m long with CINCH / RCA connector
• video output: 1.0V / 75 Ohm
• power cord length: 1m
• power supply: 12V DC
• consumption: <1W

Camera dimensions

• base 32 x 70 mm
• the distance between the bolt hole and the tongue 58 mm

Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!
